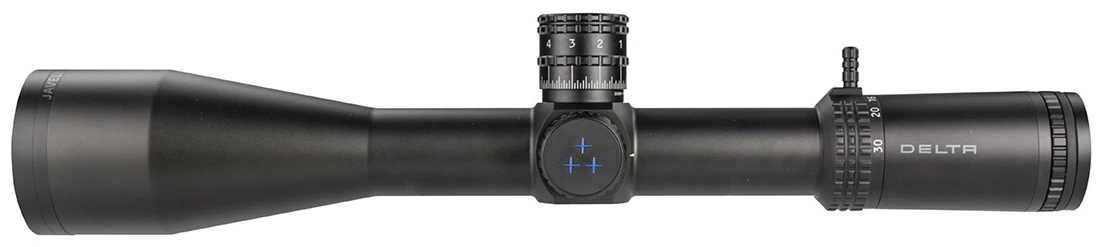

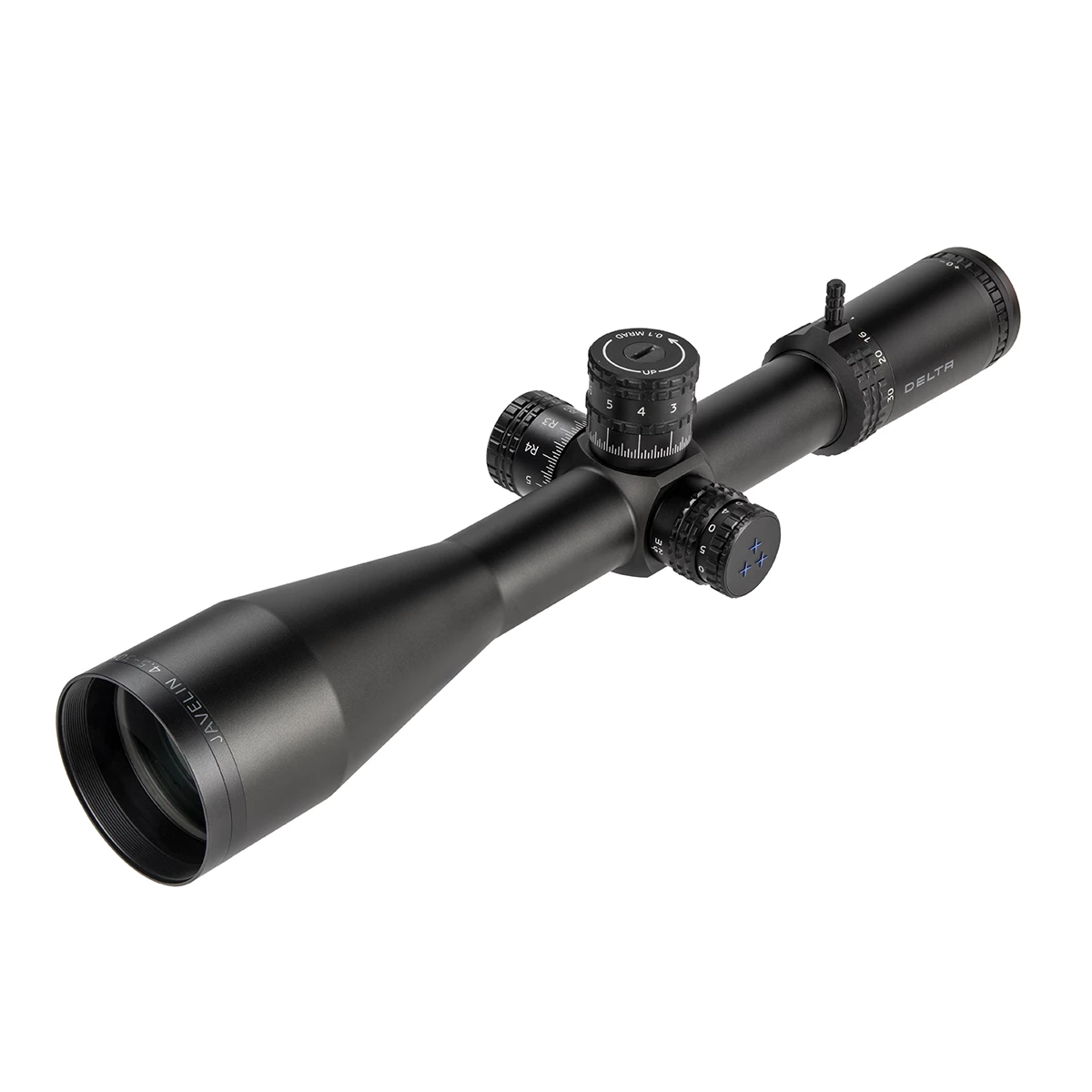

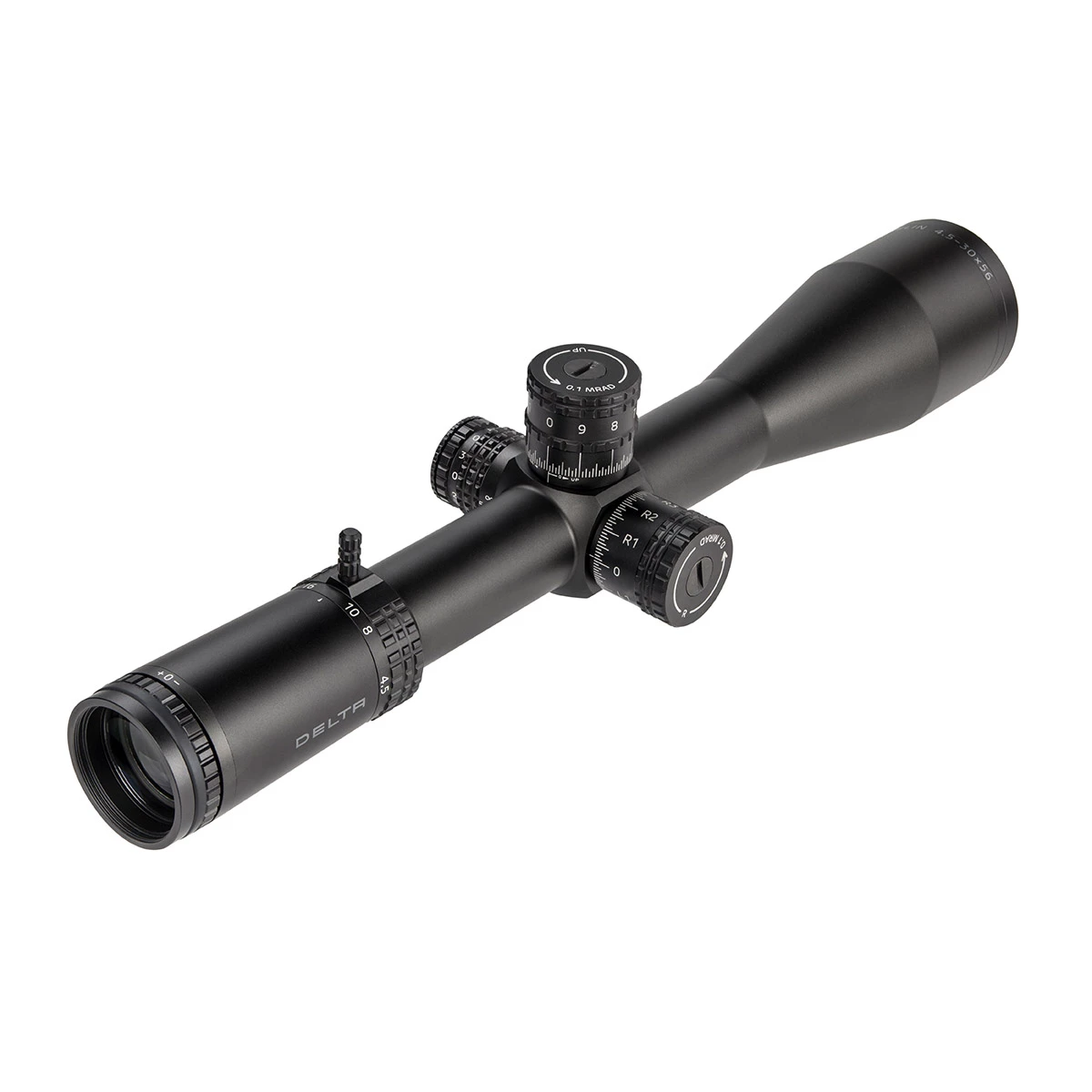

The Delta Javelin 4.5-30x56 FFP is a scope designed for sniper rifles up to and including the .338 Lapua caliber. It has all the features that will facilitate long-range shooting:
- one turret rotation 10 MRAD,
- one click 0.1 MRAD,
- turrets with markers of subsequent turns,
- reticle placed in the first optical plane, both turrets blocked,
- Zero-Stop facade lock ,
- illuminated central point of the reticle,
- sunshade, magnification lever and metal caps included,
- ED glass ,
- Elevation range 32 MRAD.
The SMR-1 is a tactical reticle designed for long-range shooters and PRS competitors , but its illuminated center makes it ideal for hunting in low light conditions. The reticle features a clear top field, a floating center dot, 0.2 MRAD markings , and an integrated vertical and horizontal ruler with 0.1 MRAD markings for easy target acquisition. The "Christmas tree" section features 0.2 MRAD markings for range, windage, and derivation. The numbers for measuring subsequent beams are positioned 1.2 MRAD to the right of center for easy viewing when counting beams, but still far enough from center to avoid obscuring the target in the most critical areas of the reticle.
Specification
| Minimum magnification: |
4.5x |
| Maximum magnification: |
30x |
| Lens diameter: |
56 mm |
| Reticle name: |
SMR-1 |
| Grid position: |
first focal plane (FFP) |
| Mesh Backlight: |
central cross |
| Distance from the eye: |
100 mm |
| Exit pupil: |
12.44 - 1.87 mm |
| Linear field of view at 100 m: |
8.2 - 1.3 m |
| Angular field of view: |
4.66 - 0.74 ° |
| Turret type: |
Open |
| Vertical adjustment range: |
32 MRAD |
| Horizontal adjustment range: |
32 MRAD |
| Single click adjustment: |
0.1 MRAD |
| One turret rotation: |
10 MRAD |
| Parallax adjustment: |
25m - ∞ |
| Diopter correction: |
-2D/+2D |
| ZeroStop: |
Yes |
| Length: |
388 mm |
| Tube diameter: |
34 mm |
| Lens outer diameter: |
63.5 mm |
| Eyepiece outer diameter: |
46.4 mm |
| Libra: |
1036 g |
| Sun visor thread: |
M58x0.75mm |
| Water resistance: |
0.3 kg/cm2 |
| Nitrogen filling: |
Yes |
| Operating temperature: |
-20 / 71 °C |
| Shock resistance: |
6500 J |
| Battery type: |
CR2032 |
| Warranty period: |
120 months |
